For large-scale fencing projects—whether industrial facilities, commercial properties, farms, or security perimeters—it’s important to understand the complete list of materials required for a reliable chain link fence. This guide outlines the essential components you’ll need and offers helpful notes for buyers who source directly from manufacturers.

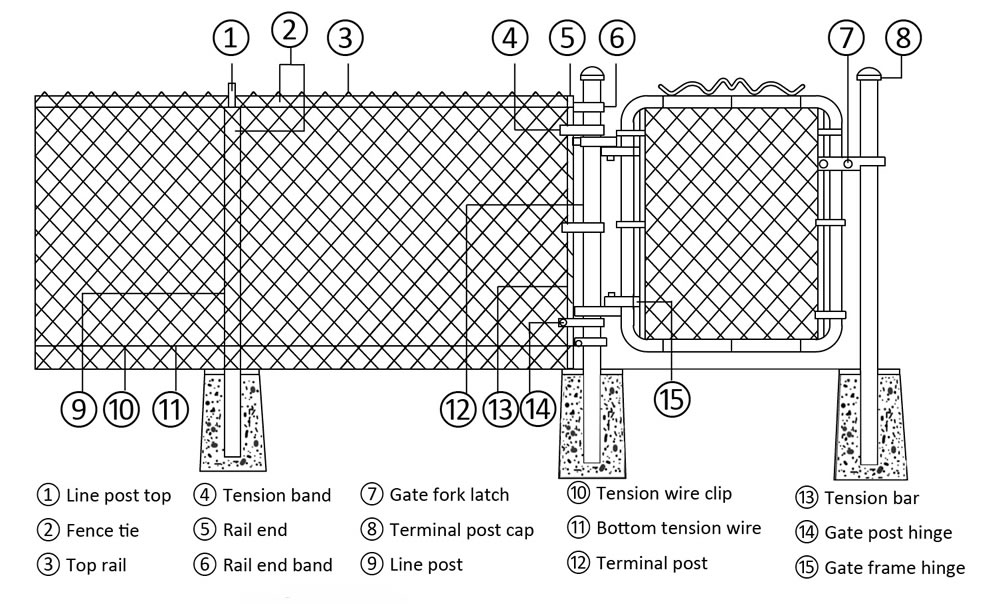

| Description | Picture | Quantity to Use |
|---|---|---|

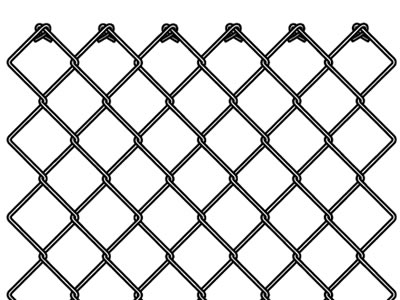

| Fence Fabric |  |
Usually sold in rolls of 50 feet |

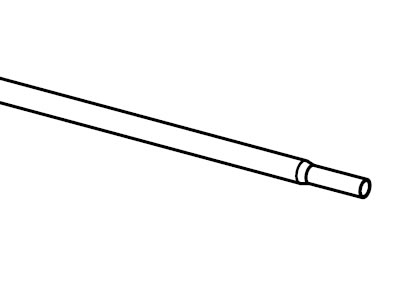

| Top Rail |  |
Total footage of fence less gate openings |
| Line Posts (intermediate posts) |  |
Divide total footage by 10 and round up (see chart below) |

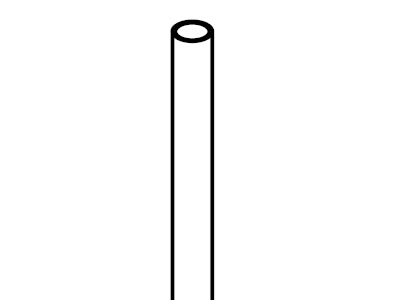

| Terminal Posts (end, corner, and gate posts) (usually larger than line posts) | |
As required (2 for each gate) |

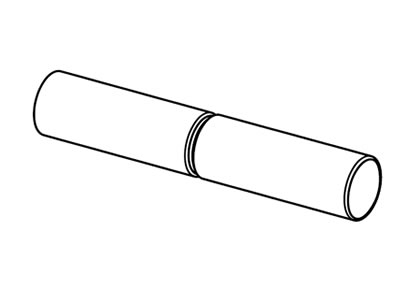

| Top Rail Sleeve |  |
1 for each length of plain top rail. Not required for swedged top rail |

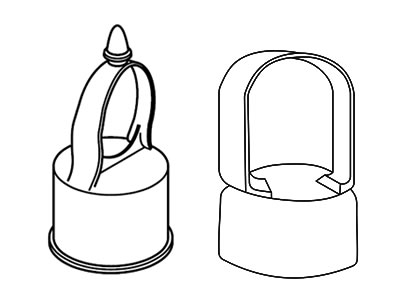

| Loop Caps |  |
Use 1 per line post (two styles shown left) |

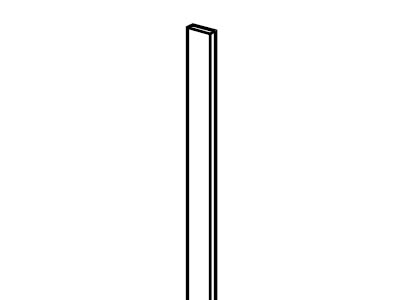

| Tension Bar |  |
Use 1 for each end or gate post, 2 for each corner post |

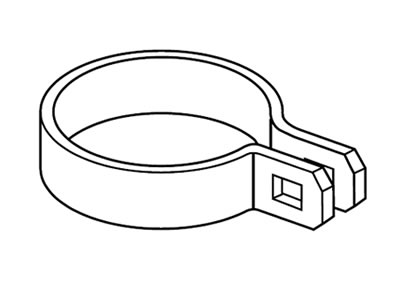

| Brace Band |  |
Use 1 per tension bar (holds rail end in place) |

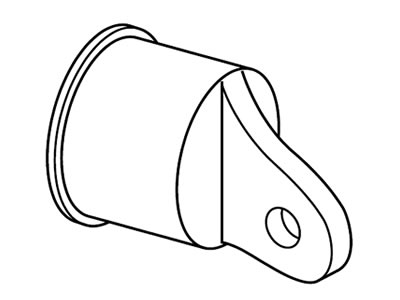

| Rail Ends |  |
Use 1 per tension bar |

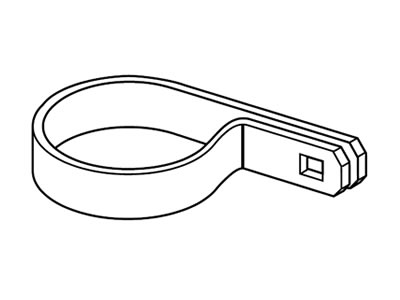

| Tension Band |  |
Use 4 per tension bar or 1 per foot of fence height |

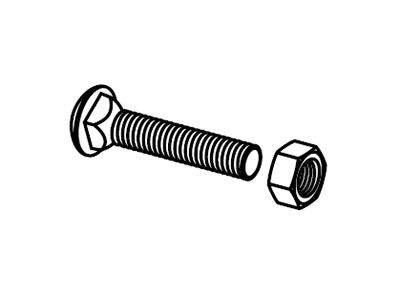

| Carriage Bolts 5/16" x 1 1/4" |  |
Use 1 per tension or brace band |

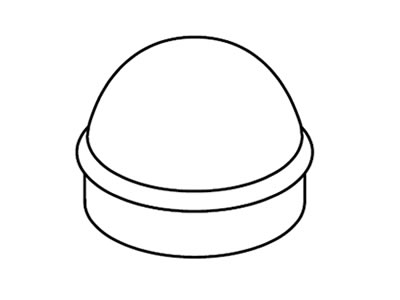

| Post Cap |  |
Use 1 for each terminal post |

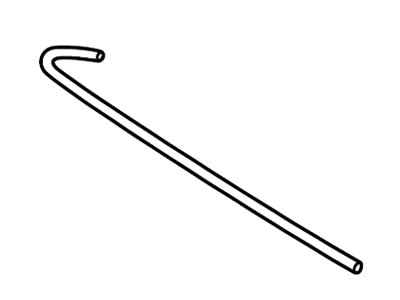

| Fence Tie / Hook Ties |  |
1 for every 12" of line posts and 1 for every 24" of top rail |

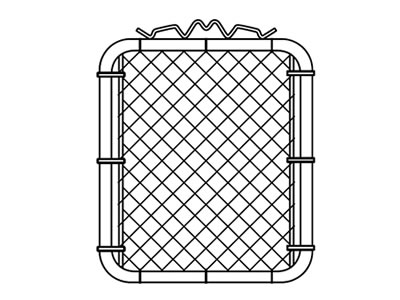

| Walk Gate |  |
|

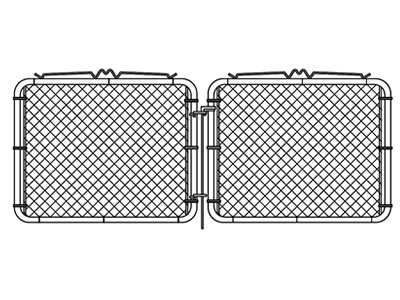

| Double Drive Gate |  |
|

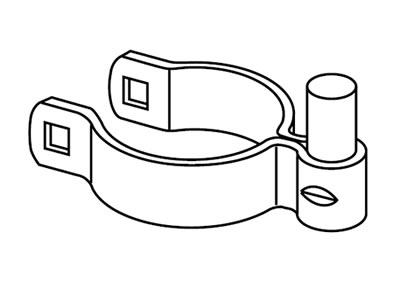

| Male Hinge / Post Hinge |  |
2 per single walk gates and 4 per double drive gate |

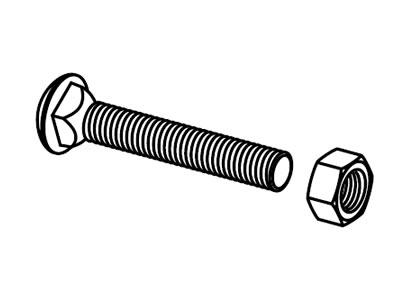

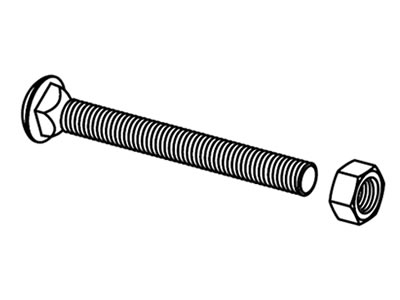

| Carriage Bolts 3/8" x 3" |  |
1 per male hinge |

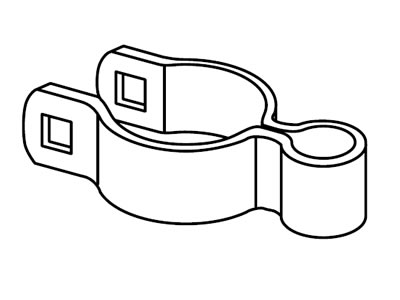

| Female Hinge / Gate Hinge |  |
2 per single walk gates and 4 per double drive gate |
| Carriage Bolt 3/8" x 1 3/4" |  |
1 per female hinge |

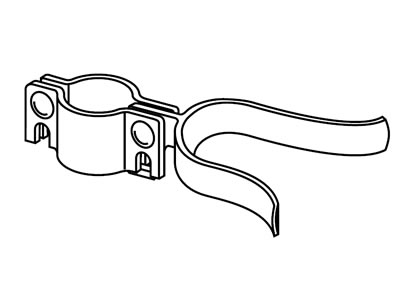

| Fork Latch |  |
1 per walk gate |
What Commercial Buyers Should Consider
-
Specification clarity: Confirm mesh gauge, wire diameter, coating type, and post thickness.
-
Usage environment: Coastal, industrial, or high-security sites may need heavier-duty material.
-
Complete supply packages: Ordering mesh, posts, fittings, and gates from a single manufacturer ensures compatibility and smooth installation.
-
Delivery and packing: For large-scale projects, ensure components are well-labeled, palletized, and shipped safely.
-
Customization: Height, wire gauge, post diameter, and coating can be tailored when sourced directly from the factory.
Having a clear understanding of the required materials makes chain link fence planning and procurement far more efficient. For B-end customers such as wholesalers, contractors, and project developers, working directly with a factory ensures consistent quality, reliable supply, and the flexibility to customize according to project needs.
