Concertina wire, often called razor wire coil or barbed tape, is widely recognized as one of the most effective physical barriers for perimeter security. It is commonly used in military areas, prisons, airports, factories, farms, and private properties where strong protection is required.

The wire is produced from galvanized steel strip with a thickness of 0.5–1.5 mm, reinforced by high tensile galvanized steel core wire of 2.5–3.0 mm. Sharp double-edged blades are symmetrically arranged to create a strong deterrent against climbing and cutting. Concertina wire is available in diameters of 450 mm, 500 mm, 600 mm, 730 mm, 900 mm, and 980 mm. After stretching, the diameter is reduced slightly (around 5–10%).

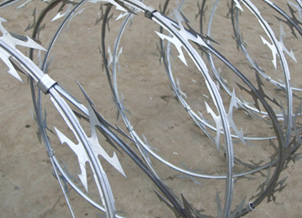

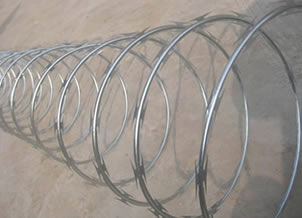

       Single coil concertina wire                            Crossed concertina wire coil

Main Types of Concertina Wire

Single Coil

• Produced as straight razor ribbon or a single coil.

• Installed without clips, forming natural loops.

• Low cost and easy to set up, suitable for walls and fences.

Cross Coil

• Made of two coils bound together with clips.

• Creates a springy, three-dimensional structure.

• Very difficult to breach – intruders must cut multiple points at once.

• Strong and reliable for high-security facilities.

Double Coil

• Combines two coils of different diameters, fixed together at several points.

• Denser structure and more attractive appearance.

• Provides stronger protection compared with single or cross coils.

Technical Details

• Core Wire: Galvanized high tensile wire, 2.3–2.5 mm.

• Blade Material: Galvanized steel strip, 0.4–0.5 mm.

• Blade Size: 22 mm length × 15 mm width, spacing 34–37 mm.

• Coil Diameter: 450 mm–980 mm.

• Standard Coil Length (Unstretched): 14–15 m.

• Surface Treatment: Hot-dip galvanized or stainless steel.

• Available Types: BTO-10, BTO-22, CBT-60, CBT-65.

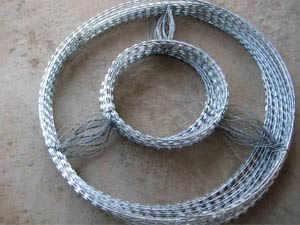

          concertina wire fold

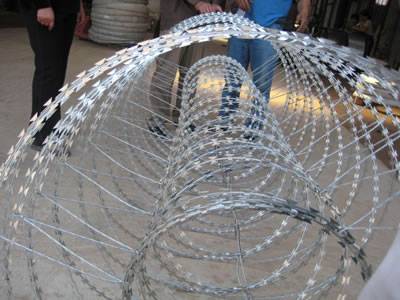

                   concertina wire unfold

Applications

• Military and prison security fencing – often installed as triple coils in pyramid design.

• Border and airport protection – durable long-term defense.

• Industrial and residential fencing – mounted on existing walls or fences for extra safety.

Concertina wire is a proven and affordable solution for perimeter protection. With multiple coil types, durable galvanized materials, and flexible installation methods, it is the first choice for many security projects worldwide.

We are a professional factory in China supplying high-quality concertina razor wire at competitive wholesale prices. Contact us for detailed specifications and a free quotation.
